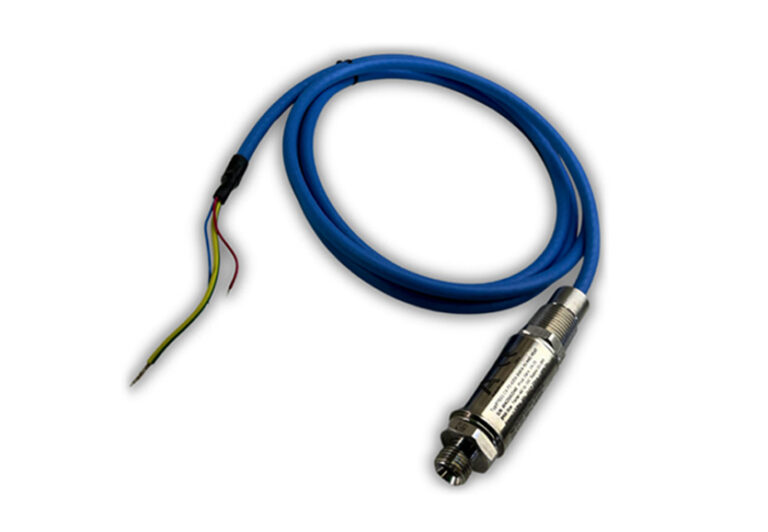

Pressure Transmitter combined with Temperature sensor
Used for pressure measurement in hydrogen dispenser systems.
Specifications
Measuring ranges to 0 to 600bar Combined with temp sensor PT100
Accuracy (non-linearity) ≤ 0.5 % of span
Working temperature -40 to 70C cable version
Telfon Cable with vent tube
Process Connection 7/16-20UNF, F250C
Material Hastelloy C276
One piece one sensor design
Designed for harsh environments
IP68 for 3bar
500VAC tested
Certificates
ATEX and IECEx certified Zone 0 and Zone 20 Category 1
