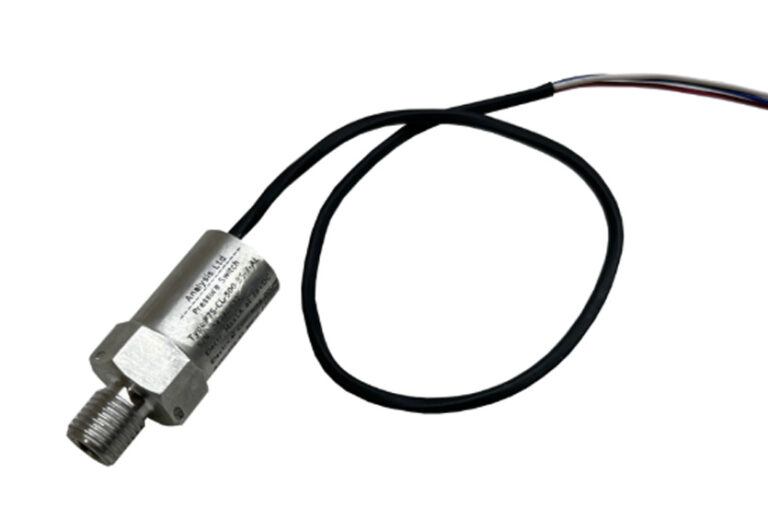

Pressure Switch Defence
Used for pressure control and protection against overpressure conditions.
Specifications
Snap action switch and Spring loaded mechanism
Electrical Rating 24VDC, 1A
Stainless steel body
MIL grade connector aluminum
Teflon or stainless-steel membrane
Electrical connection hermetically sealed
Gauged vented switch
Operating pressure from 20 psig to 100psig
Accuracy ± 3psig
Proof pressure 300 psig
Operating temperature -40C to 70C C
